Video Laryngoscope 2 Megapixel High-Definition Screen For Hospital Surgical Instruments

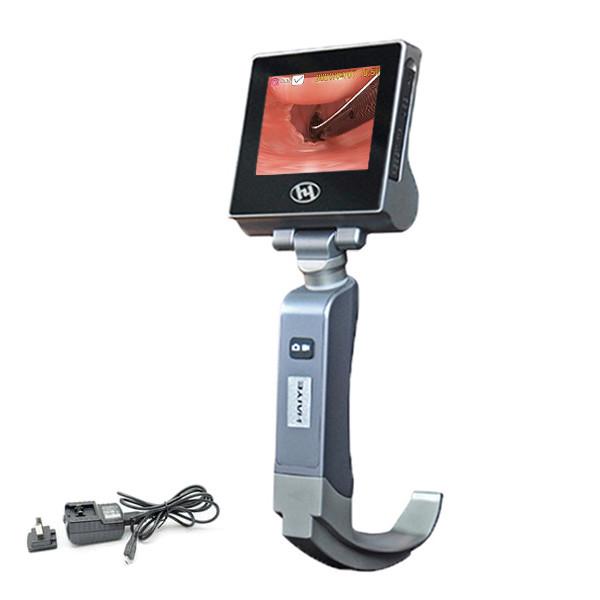

Haiye Video laryngoscope with reusable blades
Video laryngoscope is a modern laryngoscope, which transmits the image of the inside of the throat to the display screen through optical lenses and high definition cameras, so that the doctor can more clearly observe the condition of the patient's throat.
Shows clear: visual laryngoscope throat images can be transmitted to the screen, make the doctor can more clearly observe the patient's throat.
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.
2.Reducing the risk of complications: Using a video laryngoscope can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma and vocal cord injury.
3.Provide a better surgical field of view: For patients requiring surgery, visual laryngoscopes can provide a better surgical field of view, thus increasing the success rate of surgery.
4.Efficiency: visual laryngoscope intubation can quickly and accurately, so as to improve the efficiency of the medical institution.
Video laryngoscope Specification;
| Components | Parameter | Technical index |
| Screen | Size | 3.0" LCD screen |
| Resolution | 960*480 |
| backlight | LED |
| From front to rear the rotation angle | 0-150° |
| From left to right the rotation angle | 0-270° |
| Data output | Easy to create and save the file |
| Video Output | External monitor, facilitate teaching and demonstration. |
| Laryngoscope blades | Resolution | 2,000,000 |
| Power | ≤12V |
| laryngoscope blade | Reusable blades(4 model) |
| FOV | 70±2° |
| Illumination | ≥3000LUX |
| Battery | Type | Lithium-ion rechargeable battery |
| Voltage | 3.7V |
| Capacity | 3000mAh |
| Charging times | >800 times |
| Charging time | <4 hours |
