Field Angle 70±2º Laryngoscope USB Output Digital ENT Electronic Endoscope

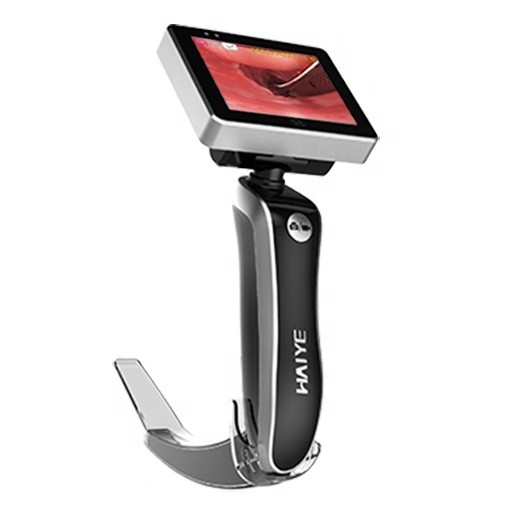

HYHJ-1330 Medical Video Laryngoscope
Technical Parameter:
◆ Resolution:960×480
◆ Pixel:200万
◆ Effective depth of field:3～100mm
◆ Field angle:70±2º
◆ Battery endurance:≥6h
◆ Charging time:≤4h
◆ Battery life:Cyclic charging＞800 times
◆ Display: 3 "TFT color display screen
◆ Angle of rotation before and after the display:0º～135º
Left and right angle of rotation:0º～275º
◆ Light source with high power waterproof LED light source, light illuminance:≥3000lux
Work Environment:
◆ Temperature:5℃～40℃
◆ Humidity:≤80%
◆ Atmospheric pressure:860hpa～1060hpa
◆ Charger input:100～240V,50/60Hz,0.35A
◆ Charger output:5V,2000mA
Application
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels
Technical Feature
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Camera Resolution | 1280 x 720 |
| Viewing angle | 70 ± 2 degree |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| Rotate angle | front to back: 135 º, left to right: 275 º |
| Blades | 3 Disposable bladeds, aseptic packaging for single use |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continous use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
Attn: Kristen Shi
