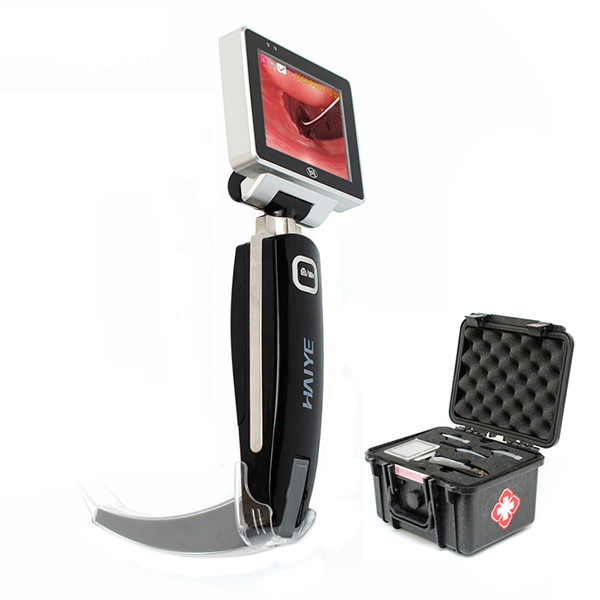

High Precision Long Service Life Simulation Practice Reusable Video Laryngoscope for Sale
HYHJ-1320 Medical Visual Laryngoscope
Technical feature
| Name | Technical term | Technical Index |
| Machine | Display Resolution | 960 x 480 |
| Pixels | 2 million |
| Camera Resolution | 1280 x 720 |
| Viewing angle | 70°± 2° |
| Depth of field | 3~100mm |
| Host key | Freeze frame, take photo and video |
| Material | Medical Stainless Steel |
| Light source | Built-in high power waterproof LED light source |
| Camera | Dual anti-fog, intubation without blind area |
| Interface | USB,TF(Hot plug) |
| laryngoscope | aseptic packaging for single use |
| Power Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output |
| Battery | Charging time | <4h |
| Cycle life of battery | > 800 times |
| Battery type | lithium ion battery |
| Battery working time | continues use ≥ 350 mins |
| Working Condition | Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% |
| atmosphere pressure | 860hpa~1060hpa |
| internal electric source | lithium ion battery,3.7V |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
- One button, both for photo and video recordings
- Rotation of the monitor at front and rear
- Rotation angle of the monitor is front to back: 135 º, left to right: 275 º
- Metal grade metal handle, suitable for direct laryngoscopy (perfect for training purposes)
- Cordless and lightweight for maximum portability
- Three models, an adult and a child, and infant version

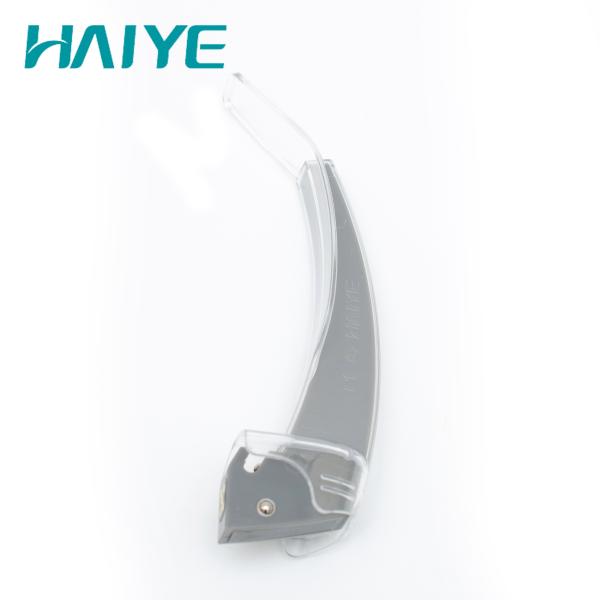

- Strong and rigid disposable blades
- Choice of 3 different blade sizes per model
- Fully charged battery gives 6 hours of continuous use
Technical Parameter
Display Resolution :960×480
Pixel :2 million
Effective depth of field :3～100mm
Field angle :70º ± 2°
Battery service life :≥6h
Display: 3 inch TFT color display screen
Front and back rotation angle of display :0º～135º,Left and right rotation angle of display:0º～275º
The light source built-in high power waterproof LED light source, and the illumination:≥3000lux
Working Condition
◆ Tem. :5～40℃
◆ Humidity: less than 80%
◆ Atmospheric pressure :860~1060hpa
◆ Battery input : 50/60Hz, 0.35A, 100～240V
◆ Battery output : 2000mA,5V
◆ Charging time : ≤ 4 hours
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscopes in China over 9 years, we offer different types of disposable and reusable blades video laryngoscope, welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 set as sample is acceptable, we offer OEM service and can print your logo as requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months(1year) product warranty, within warranty change new machine(non-human damages), after warranty only pay produce cost.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
